• Flammability: VW-1;
• Heat-resisting: Operating temperature can be as high as 125°C;
• Low temperature withstand: No cracking down to -55°C;
• Safety: Shorten phase spacing & ground clearance for power distribution system;
• Convenience: Continuous tubing to meet different lengths of bus-bar;
• Easy marking: multiple colors.
| Size (mm) | I.D. as supplied (mm) | After recovery | Len.(m) per roll | |
| I.D.(mm) | Wall (mm) | |||
| 60.0/30.0 | > 60.0 | < 30.0 | 1.0±0.2 | 25 |
| 70.0/35.0 | > 70.0 | < 35.0 | 1.1±0.2 | 25 |
| 80.0/40.0 | > 80.0 | < 40.0 | 1.1±0.2 | 25 |
| 90.0/45.0 | > 90.0 | < 45.0 | 1.2±0.2 | 25 |
| 100.0/50.0 | > 100.0 | < 50.0 | 1.2±0.2 | 25 |
| 120.0/60.0 | > 120.0 | < 60.0 | 1.2±0.2 | 25 |
| 150.0/75.0 | > 150.0 | < 75.0 | 1.2±0.2 | 25 |
| 200.0/60.0 | > 200.0 | < 60.0 | 1.2±0.2 | (*) |

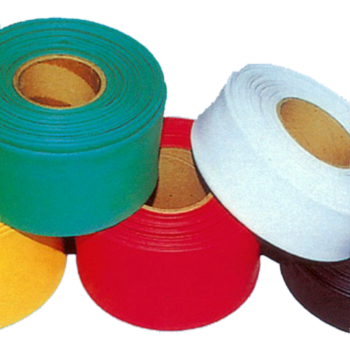

1. Standard Colors: BLACK, RED, YELLOW, GREEN, BLUE, WHITE;
2. For sizes less than 60.0 mm, please select DRS.
(*) The length is 1.0 meter per piece.
| Property | Condition | Performance |
| Tensile strength | ≥ 12MPa | |
| Elongation | ≥ 400% | |
| Tensile Strength after Aaging | ≥ 10MPa | |
| Elongation after Aging | ≥ 300% | |
| Deformation Test | 131°C, 1h | ≤ 25% |
| Heat Shock Test | 250°C, 4h | No Cracking |
| Flexibility Test | No Cracking, No Permanent Deformation | |
| Conductor Corrosion | No Corrosion | |
| Volume Resistivity | ≥ 1014 Ω·cm | |
| Dielectric Withstand | 2.5KV 60s, No Breakdown | |
| Breakdown Voltage | ≥ 12 KV | |
| Dielectric Strength | ≥ 25KV/mm | |
| Dielectric Withstand after Aging | 7 Days Air Oven at 158°C | 2.5KV 60s, No Breakdown |
| Breakdown Voltage after Aging | ≥ 12 KV | |
| Cold Bend Test | No Cracking | |
| Longitudinal Change | 3 min Air Oven at 200°C | ± 10% |
| Eccentricity | ≤ 30% | |
| Flammability | VW-1 | |
| Full Shrinkage Temperature | 3 min | 100°C |
