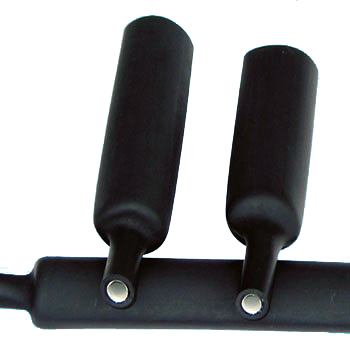

SBDRS-1 tubing is flame retardant. Its inner wall is hot melt adhesive which will melt when heated and cover the object surface, to form a good seal system. It is widely used in a variety of connectors, finger, wire and cable to connect the sealing, patching and so on to provide moisture-proof, waterproof, insulation protection.| Size (mm) | I.D. as supplied (mm) | After recovery | Len.(m) per roll |
|
| I.D.(mm) | Wall (mm) | |||
| 3.2/1.6 | ≥ 3.2 | ≤ 1.6 | ≥ 0.70 | 200 |
| 4.8/2.4 | ≥ 4.8 | ≤ 2.4 | ≥ 0.70 | 100 |
| 6.4/3.2 | ≥ 6.4 | ≤ 3.2 | ≥ 0.75 | 100 |
| 9.5/4.8 | ≥ 9.5 | ≤ 4.8 | ≥ 0.75 | 100 |
| 12.7/6.4 | ≥ 12.7 | ≤ 6.4 | ≥ 0.75 | 100 |
| 19.1/9.6 | ≥ 19.1 | ≤ 9.6 | ≥ 0.90 | 50 |
| 25.4/12.7 | ≥ 25.4 | ≤ 12.7 | ≥ 1.10 | 25 |
| 38.1/19.0 | ≥ 38.1 | ≤ 19.1 | ≥ 1.10 | 25 |
| Property | Performance | Standard |
| Longitudinal Change | ± 10% | - |
| Tensile Strength | ≥ 13MPa | ASTM-D 638 |
| Elongation | ≥ 350% | ASTM-D 638 |
| Volume Resistivity | ≥ 1014Ω·cm | ASTM-D 257 |
| Dielectric Strength | ≥ 25KV/mm | ASTM-D 149 |
| Flammability | VW-1 | UL 224 |
| Peel Strength | ≥ 30N/mm | DIN 30672 |
